Fiber laser has been the mainstream marking method lately because it does not need maintenance and consumable parts. Besides, high efficiency, low power consumption, easy to operate etc. all of these advantages make fiber laser marking machine the most suitable choise, especially when want to mark on metal materials.
| HBS GQ-F Series | Technical data |
| Laser power | 20W, 30W, 50W, 100W |
| Laser wavelength | 1064nm |
| Beam quality | < 1.5 |
| Repetition frequency | ≤ 100 KHz |
| Marking area | 110 x 110 mm |
| Marking depth | ≤ 1.2 mm (adjustable) |

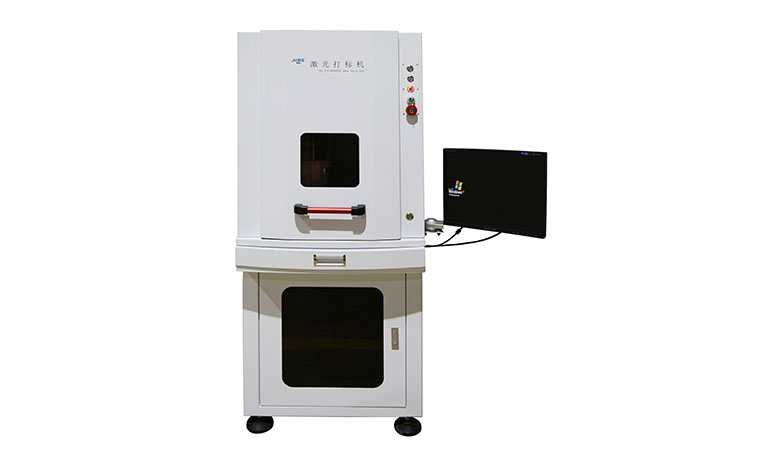

The spacious enclosed design makes GQ-F especially safe when marking workpiece. Besides, enormous space makes it easier for putting complex workpiece and install needed marking accessories. GQ-F can still be integrated into assembly line by simply deattaching side doors. Focus finder system, pilot laser, easy to use software, motorized Z axis, emergency stop function, will make marking process more safe, efficient and productive.
